5m3 Small Autogas Skid Stations

5m3 Small Autogas Skid Stations

    Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
    Terms of Trade: FOB,CFR,CIF,EXW,FCA,CPT,CIP
    Min. Order: 1 Bag/Bags
    Delivery Time: 30 Days
    Packaging: no
    Productivity: 25 sets per month
    Brand: Xagong Chusheng
    Transportation: Ocean,Land
    Place of Origin: Suizhou,Hubei ,China
    Supply Ability: 300 sets per year
    Certificate: ISO9001,ISO14001,CCC,SGS

Basic Info

Model No.: 5m3

Product Description

Chusheng is a top Autogas Skid Stations manufacturer in China. We design and manufacture up to 8 refilling scales according to customer's requirements. Different tank sizes and system layouts are provided by our experience engineer regarding to countries' regulations and work environment. Each unit is inspected via a series of test before leaving our factory.
Company Information
Xiagong Chusheng Special Purpose Vehicle Co.Ltd. is one of the top 500 manufacturer of special trucks and pressure vessels in China, We have been offering LPG Skid Filling Plants for more than 20 years with high quality and good after-sale service, these LPG Skid Plants are mobile and easy to operate. The plants generally have up 30years operating life span. Our trendy facilities give best value for our customers.
Standard features
Small portion of land/space needed
Minimum Installation Area
Ex-proof electrical execution
Low Investments and low maintenance Cost
Possibility to compose the system as complete unit with all require safety fittings
Applications
Propane retail distribution
Farm heating and hot water
Fleet vehicle fueling
Cooling and heating appliances
Technical data
1) Medium: LPG, Propane Gas
2) Temperature range: -20℃~50℃
3) Design pressure: 17.7 Bar
4) Flow rate: depending on the type of pump installed
5) Tension: 380V/50Hz, 220V/50Hz
Tank material
Q345R, Q370R, SA 516 Gr.70, SA612 Gr.70
Tank capacity
5,000l, 10,000l, 15,000l, 20,000l, 25,000l, 30,000l, 40,000l, 50,000l etc.

Tank Parameter
Medium: LPG (Propane)
Design Pressure: 16.1 Bar
Foots: Saddle type
Volume: 5,000 litres
Filling Coefficient: 540 kg/m3
Host Material: Q345R
Head Type: Elliptical
Diameter: 1600 mm
Thickness of Cylinder: 10 mm
Thickness of Head: 10 mm

Corrosion Allowance: 1 mm
X-ray: Lengthwise %100, weldings %100
Penetration: Corner weldings
Painting: Epoxy primer (150 Um) + Top coat epoxy (100 Um)
LPG pump
Type: YQ15-5
Flow rate: 15.5m3/h
Rotate speed: 780rpm
Diameter of inlet: 50mm
Diameter of outlet: 50mm
Many brands avaiable: Corken, Blackmer, Rochester, Rego
LPG Refilling Scale
Type: TCS-150
Working tempertature:-10℃-40℃
Mains voltage: AC220V+10-15%, 50Hz
Error amount: <50g
Show data: 14-bit LED monitor

Safety Accessories: Emergency Shut-off Equipment, Level Meter, Pressure Gauge, Thermometer, Safety Valve,
Equipments
From 4 and up to 8 cylinder filling machines.
Electronic leak detector.
Shrinking machine.
Default cylinder discharging unit.
Electronic Check Control.
Chain conveyors and roller conveyors.
Fire fighting system.
LPG supply hose.
Ex-proof Electrical panel.
Pictures of LPG Skid Filling Stations

5m3 Autogas Skid Stations

5m3 Small Autogas Skid Stations

Autogas Skid Station

Autogas Skid Stations

Small Autogas Skid Stations

There are kinds of production lines and technical staff in our company, we can also manufacture the following products:
LPG Bullet Tanks\Domestic LPG Storage Tanks
Anhydrous Ammonia Bullet Tanks\Liquid Ammonia Storage Tanks
LPG Tank Trucks\Propane Delivery Trucks
LPG Transport Trailers\LPG Gas Tanker Trailers
XCMG Truck Mounted Cranes\Heavy Duty Crane Trucks
Sewage Suction Trucks\Septic Vacuum Trucks

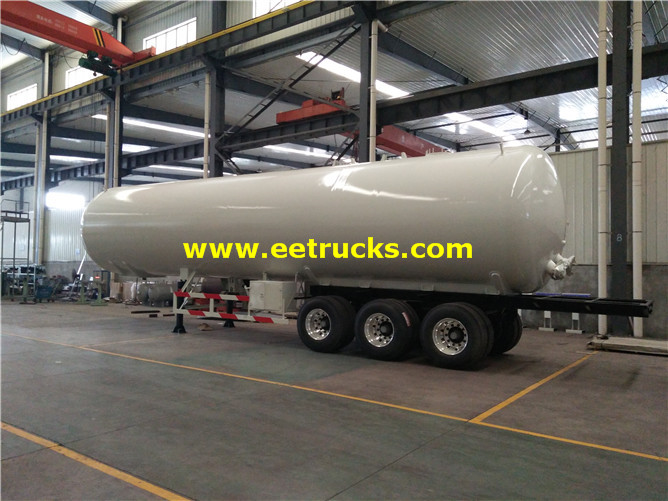

LPG Delivery Trailer Tanks

1. How much volume will you offer about the Mobile LPG Filling Station?
The common size is 5,000 litres, 10,000 litres, 20,000 litres, 40,000 litres and 50,000 litres, and we can
design it from 5,000 to 100,000 litres according to your requirement.
2. Are your Mobile LPG Filling Station safe?
We have been manufaturing the product for 20 years, all weldings of the pipeline and tanks are instected with
nondestructive examination such as RT, MT, UT etc.
3. How about the delivery period ?
It is up to the quantity and volume, we will offer you a 20 CBM LPG Filling Station in 30 days.
4. Can you make the station with double LPG pumps and LPG dispensers?
Yes, we can design double filling equipments as per your requirement, and all valves are also provided.
5. How about the after-sale service?
Our technical staff can provide you the technical support to guide you how to use the product, and we take
full responsibility during the design life of every product.
