47 Inch Light Resistant Infrared Touch Frame
|Payment Type:||L/C,T/T,Paypal,Western Union|
|Terms of Trade:||FOB,CIF,EXW|
|Min. Order:||1 Piece/Pieces|
|Delivery Time:||30 Days|
|Packaging:||Carton + EPE Foam|
|Place of Origin:||China|
|Certificate:||ISO9001 And ISO14001|
Model No.: GT-IR-TB47
Infrared Touch Frame TB Series
GreenTouch IR touch screen is a high-end ,multi-point infrared touch screen technology with perfect combination of tradition and innovation,Our touch screen has the features of fast reaction speed, strong anti-environment light ability, good stability and easy integration;With the function of plug and play and without driver, any non-transparent object can change the infrared light and realize
the touch operation which is convenient for people to operate and use the digital life and brings the greatest convenience and interactivity to life.
The company has passed the ISO9001 quality system and ISO140001 environmental system certification. The products are assembled in a class 1000 dust-free workshop. During the production process, they pass the 24-hour aging and 100% IQC, OQC testing to ensure product quality.
Ultra-thin, ultra-narrow design, no matter whether it is external or built-in, it can adapt to various needs without affecting the appearance and saving built-in space. Infrared sensing principle, simple finishing, LED die, stable performance, high touch precision and long life. The unique installation method makes the installation of the client a breeze.The surface of the aluminum alloy is sprayed and oxidized, and the whole is delicate, simple, generous and multi-touch. Simple operation, USB connection, plug and play.
GreenTouch can provide you with product customization, the size is 27-98 inches, but you need to pay for the mold cost of the sample and the number of MOQ1K orders.
POS Machine,Automatic Production,Office Automation,Inquiry Machine,Voting,Ticket Sales and Lottery Sales Machine,Medical Devices,Retail Service Machine,Touch the table.
We have our own brand -Greentouch,already established full-automatic production line and professional sales&after-sales team.In addition infrared touch Frame,we also supply 4 wire resistive touch screen, 5 wire resistive touch screen,capacitive touch screen,
interactive touch foil,touch monitor,touch all-in-one PC and other touch products.
|Series:||Infrared Touch Frame TB|
|General Size:||27 Inch to 98 Inch|
|Touch Activation Force：||No Pressure Required|
|Luminous Transmission:||＞92%(100% With No Glass)|
|Reported Touch Resolution:||Without Driver:32768*32768|
|Touch Response Time(Multi touch):||10-15ms|
|Touch Response Time(One Touch):||7ms|
|Touch Object Size Recognition:||Yes|
|Interface:||Socket type USB cable 1.5 meters, socket type 5P|
|Touch Refresh Rate:||≥110Hz|
|Communication:||USB2.0 Full Speed|
|Power Supply Mode:||USB*1|
|Average Current:||DC 5.0V±5%|
|Fault-tolerant:||10% Non-consecutive Sensors Are Damaged|
|Humidity:||Up to 90% RH from 0℃ to +40℃，No-condensing|
|Working Temperature:||Working Temperature:-10℃~50℃|
|Storage Temperature:||Storage Temperature:-20℃~60℃|
|ESD:||EN 6100-4-2 2008:3 level.4KV contact discharge and 8KV air discharge|
|Firmware Upgrade:||USB Upgrade:Windows 8,Windows 7|
|Support OS(Multi touch):||Windows 10,Windows 8,Windows 7,Andriod|
|Support OS(One touch):||Windows XP,Mac OS ,LInux|

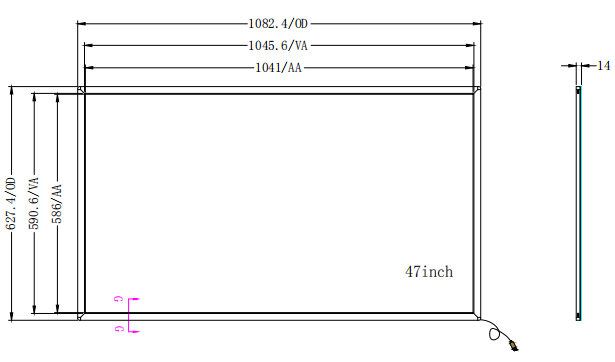

Size drawing of 47 inch infrared touch frame:
USB interface picture
